INTROMET ITM-525 – PCB copper thickness gauge

ITM-525

General information

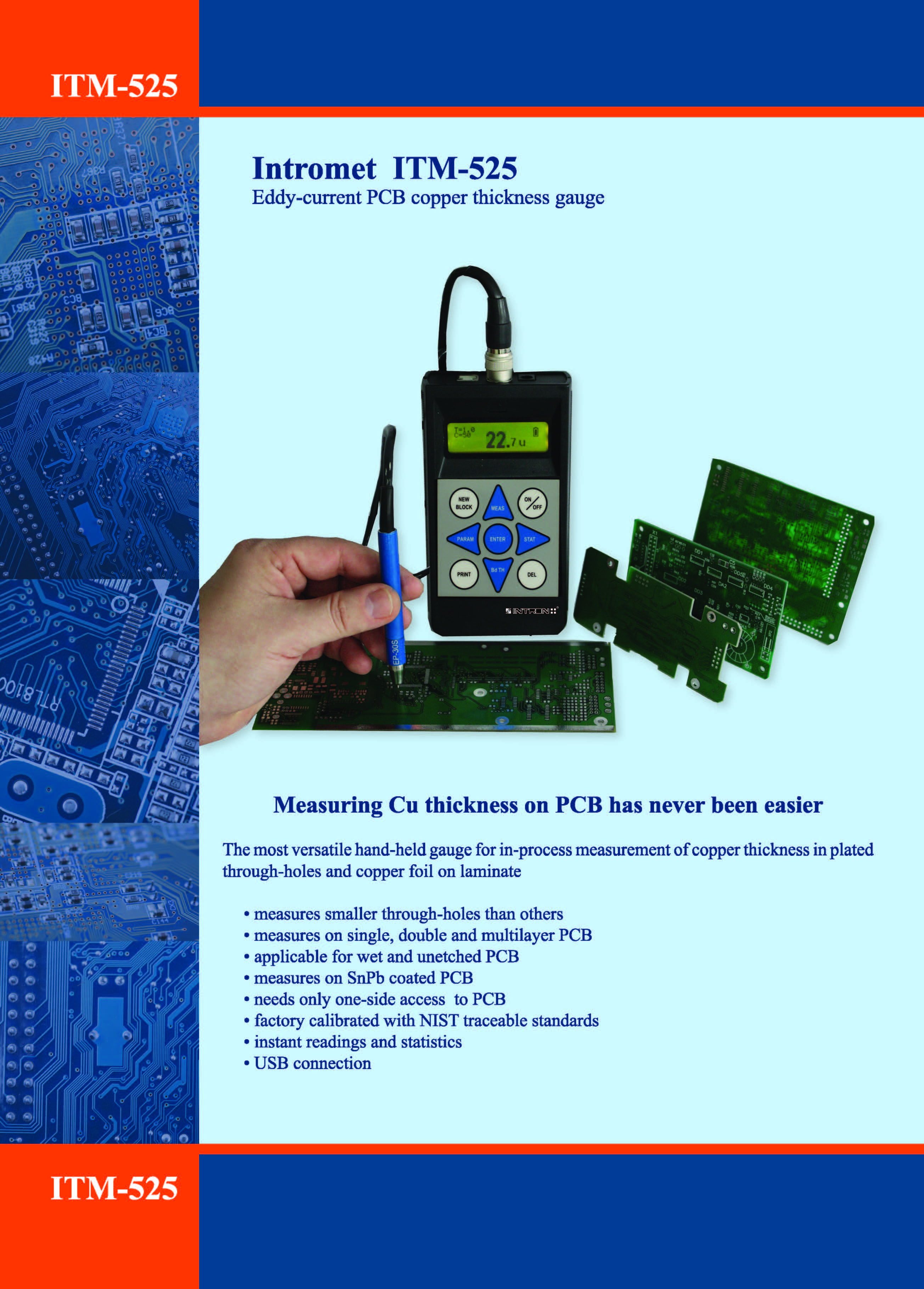

The INTROMET ITM-525 gauge is designed for non-destructive contactless in-process measurement of copper thickness in plated through-holes and copper foil on laminate. ITM-525 is used for in-process control to maintain high-quality PCB production.

Features                                              Specification

- Measures smaller through-holes than others          - PCB thickness  0,5 to 6 mm
- Measures on single, double and multilayer PCB    - Diameter of PCB holes 0,45 to 2 mm
- Measures on PCB of unlimited dimensions            - Measuring thickness in the holes 5 to 60 µm
- Applicable for wet and unetched PCB                     - Resolution 0,1 µm
- Measures on SnPb coated PCB                              - Measuring thickness on copper laminate
- Needs only one-side access to PCB                         15 to 80 µm
- Factory calibrated with NIST traceable standards
- Instant readings and statistics
- USB connection

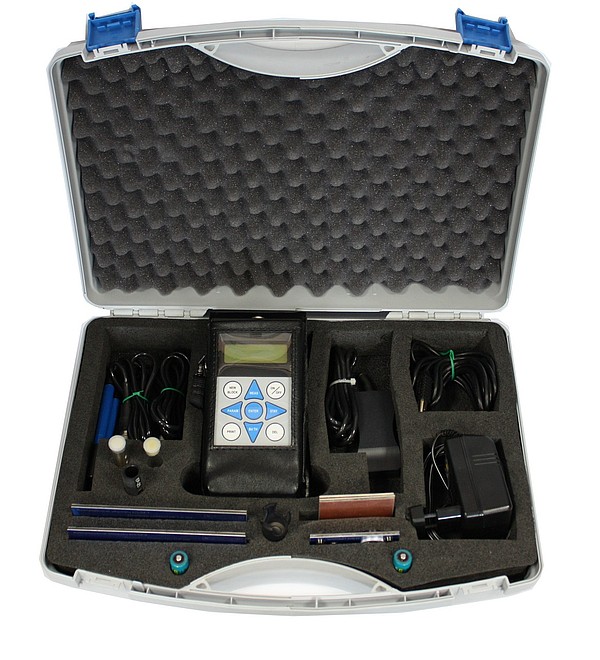

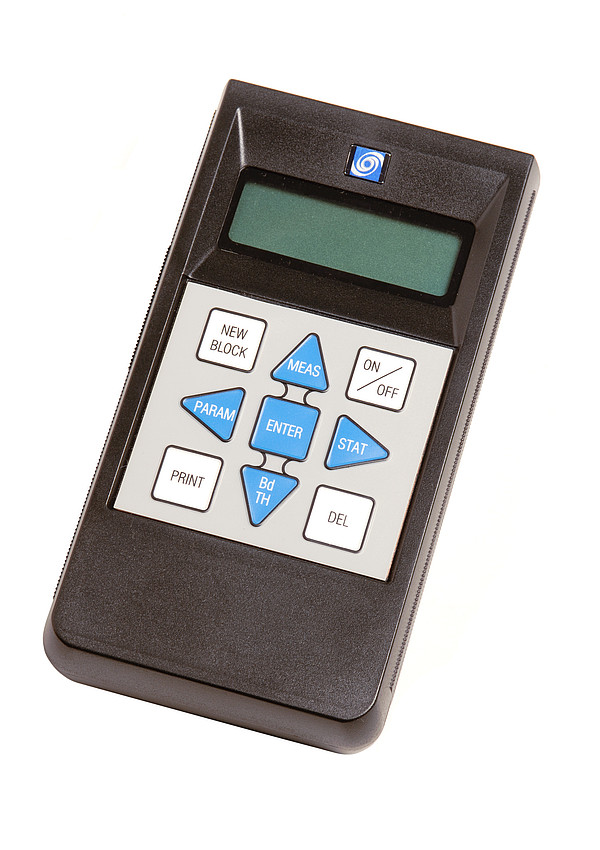

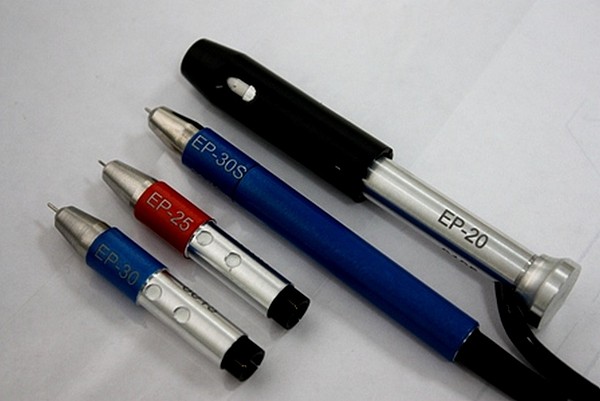

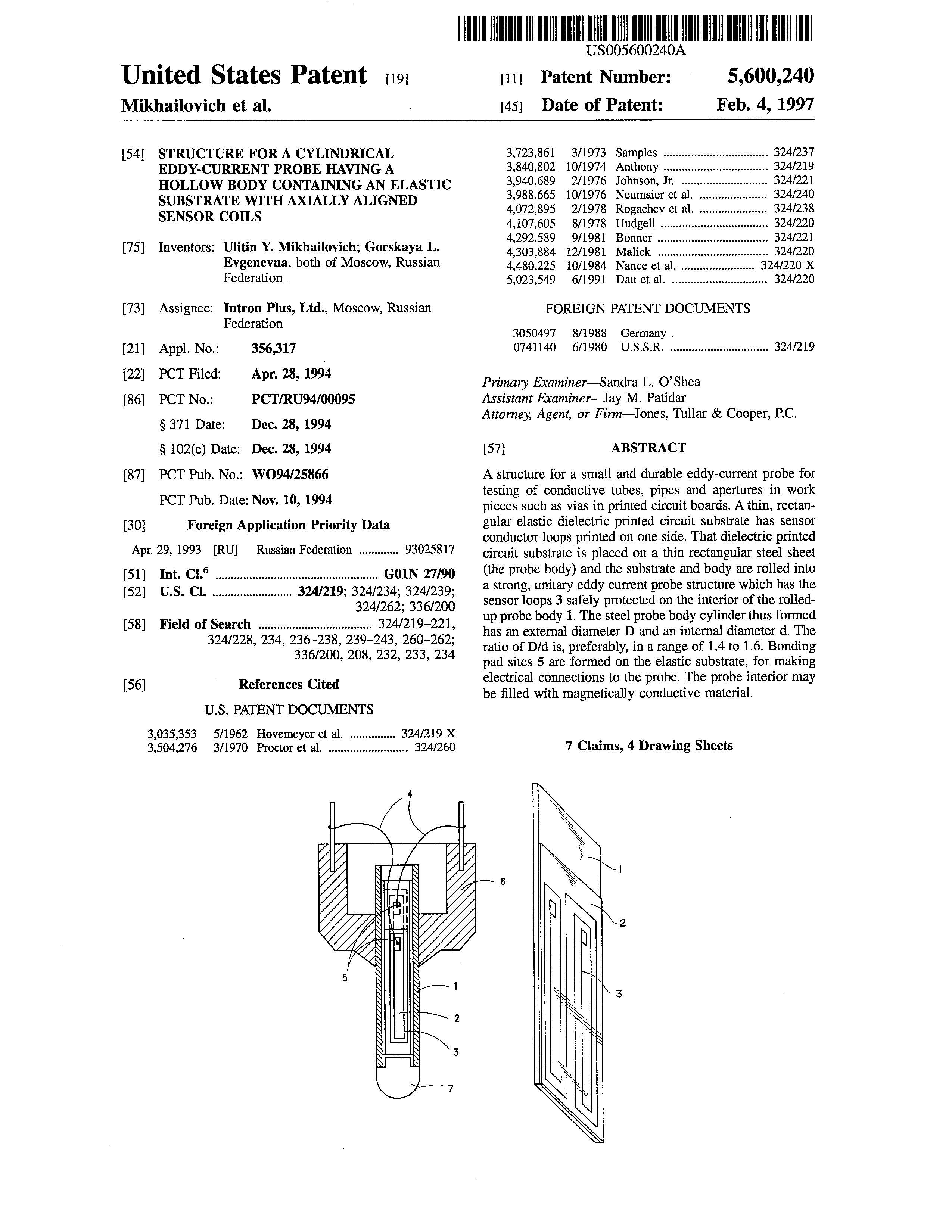

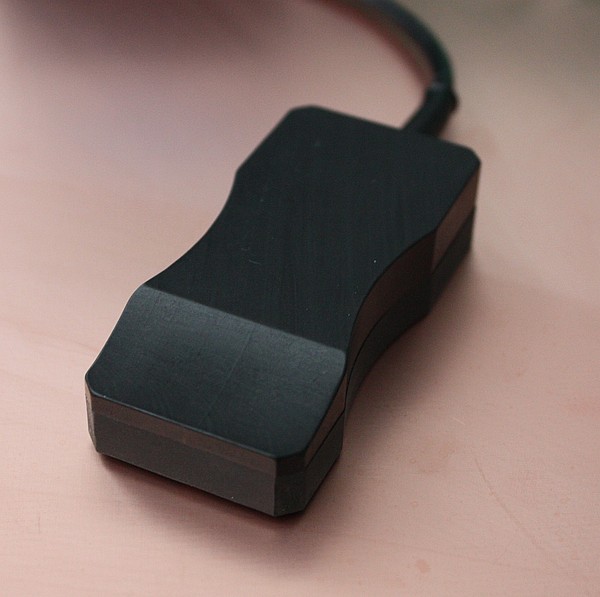

The INTROMET ITM-525 utilizes eddy current principle of operation and consists of a basic unit and  a variety of probe sizes.
